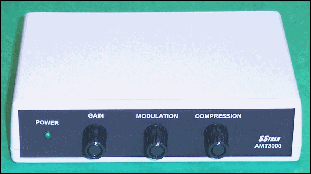

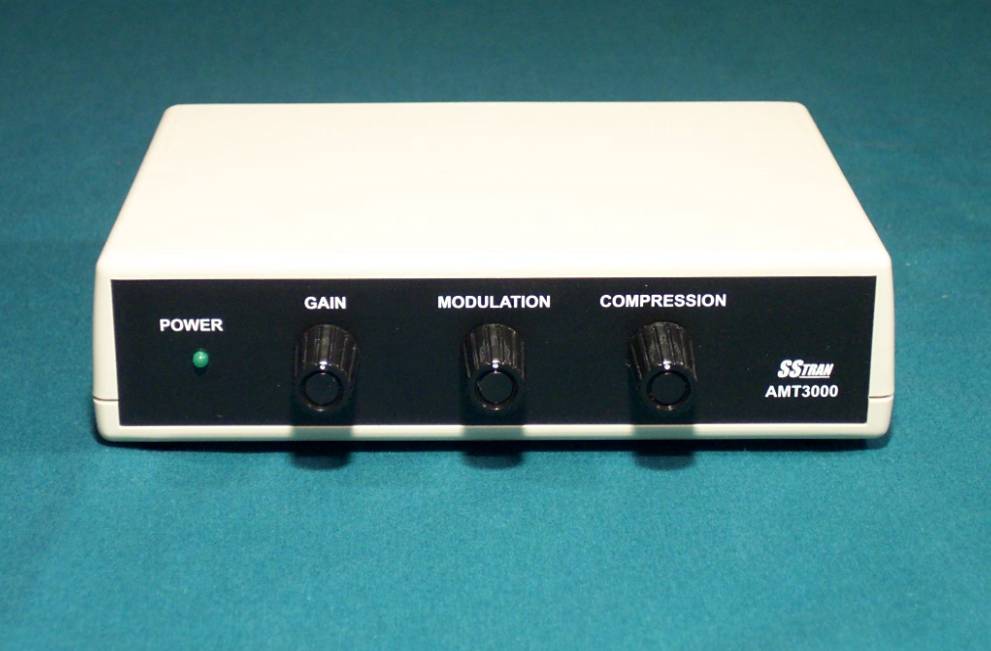

SSTRAN AMT3000 AM Transmitter
|
|
|
| Specifications: |
- FCC Part 15 Compliant
- Emission type: A3 Amplitude Modulation.
- Modulation Type: Series Modulation.
- Modulation Capability: 100%
- Carrier Shift: less than 0.5%
- Broadcast Frequency Range: 530 kHz to 1705 kHz in 10 kHz increments
- Frequency Response: 10Hz to 20kHz
- Audio Input Level: 200mV for 100% modulation
- Audio Input Impedance: 4 ohms to 50K ohms
- Distortion: 0.5%
- Final DC Input
Power: 100 milliwatts
- Duty Cycle: 100%
- AC Ripple (Hum): Less than 0.3%.
- Frequency Stability: 0.003%
- Antenna Matching System: Pi-Network
- Price: Sale: $149.95
|
|
|
| Features: |
- Series Modulation for superior sound and signal quality.
- Dual voltage regulator for hum free operation.
- Pi-Network design for antenna matching, maximum efficiency, and minimum harmonics.
- Full 100 milliwatt legal power.
- Dual RCA jacks accepts inputs from compact disc, ipod, and Mp3 players, computers, internet and satellite radio, boom-boxes, cassette decks and recorders, audio mixers.
- Impact resistant ABS cabinet.
- 1 year warranty
- No license required.
- Complies with Part 15 rules.
Hear all there is to hear with high performance AM transmitter products from Low Power Radio. Engineered for perfection. Order yours today!
|
|
